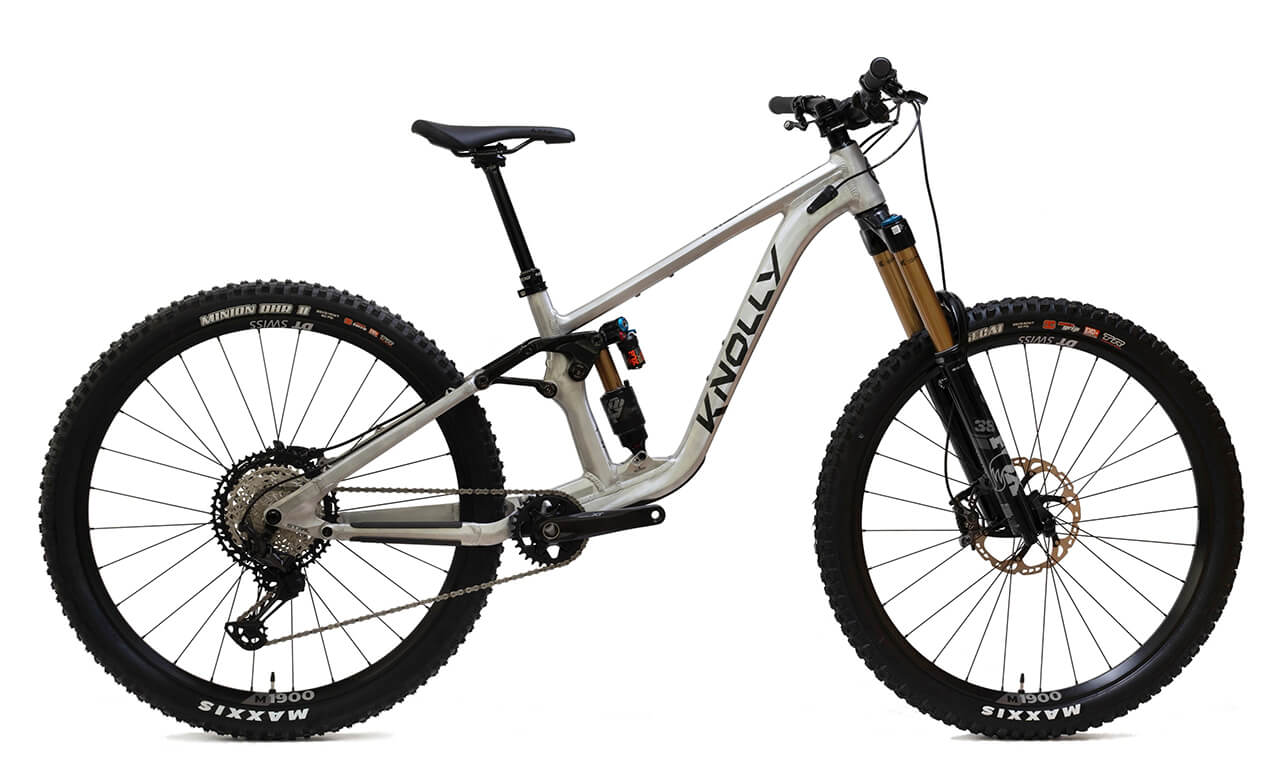

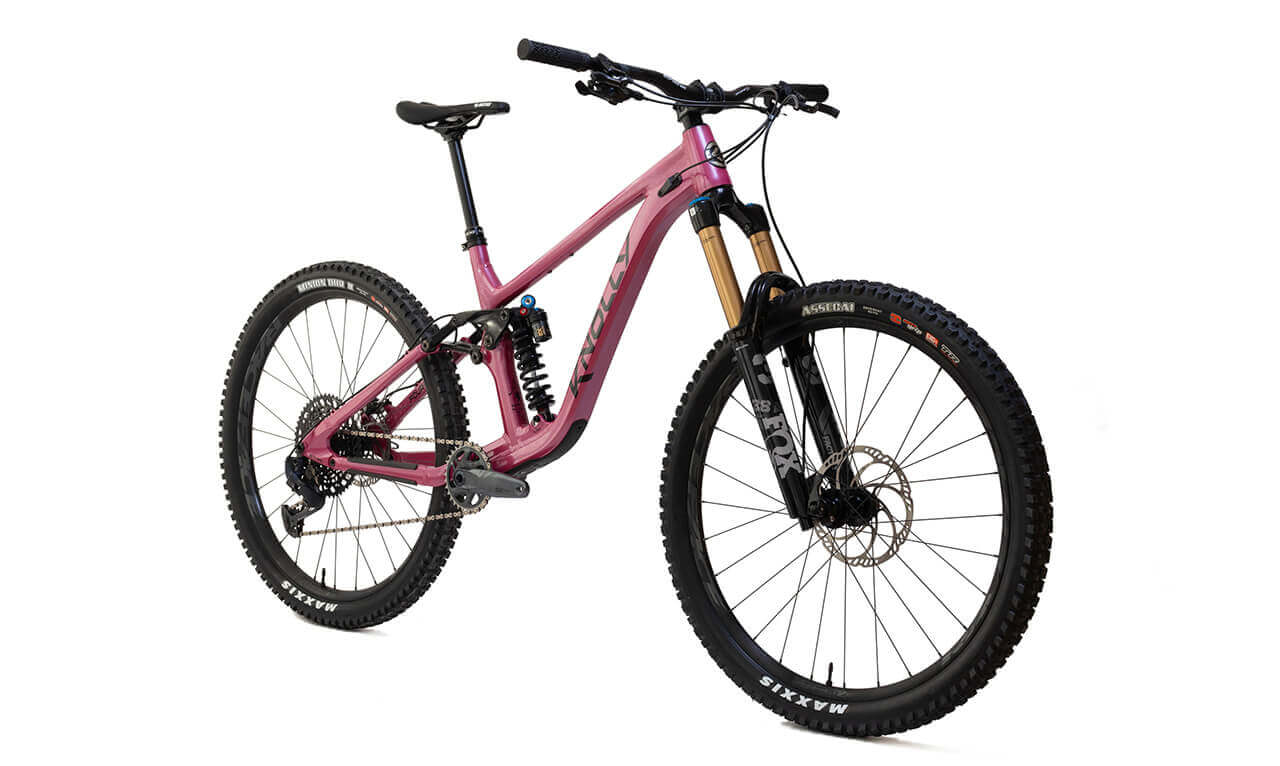

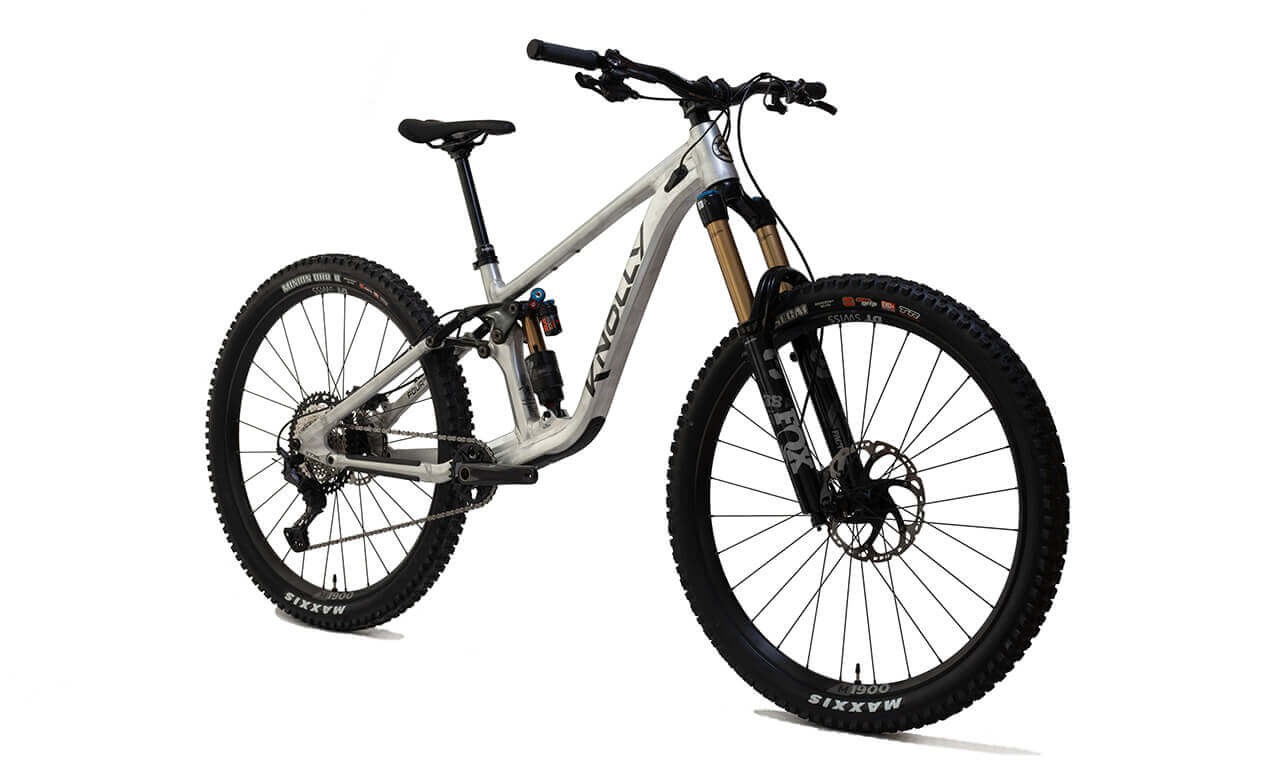

Knolly Bikes NEW Chilcotin

The NEW Knolly Chilcotin is longer, faster and more aggressive. With a completely updated geometry, kinematics and frame design, the Chilcotin was created to charge down rugged technical terrain as the Enduro bike in the new Knolly lineup.

Consumers asked and Knolly answered: all new frames include standout details like the straight top tube design, Enduro bearings on all pivots, and a one-piece monolink driving the shock. With the new Chilcotin, there are two suspension options (170/170 & 160/155) and an expanded size offering of small through x-large frames.

Chilcotin Key Highlights

Fork options: 170 & 160
Rear travel options: 170 & 155
Wheels: 29″
Straight top tube – better standover and improved aesthetics
Unified monoblock rocker link – working in collaboration with the lower swing link; increased rigidity and lessens lateral stresses on shock mount
Enduro bearings in all pivots
Flat tooling bearing locations – makes bearing service removal and installation easier
Size specific chainstay length – creates a better balance bike and better fit for tall and short riders

SRAM UDH compatibility with a Knolly specific fully CNC’d aluminum hanger included
Supports long dropper posts (200mm – 240mm dependant on frame size) for a wide range of inseam lengths
Mounts for tools (under the top tube)
Lower shock mount features 30mm axle to work with Fox Roller Bearing Shock hardware kits
Post Mount Direct 180mm rear brake mounts
157Trail rear end spacing- brings improved rear end stability and chainline.

Chilcotin Sizes

Small, Medium, Large, X-Large*
*New size small option so more riders can fit our most aggressive big wheeled bike.

MSRP Pricing

CHILCOTIN 160/155		CHILCOTIN 170/170
Deore: $5999 CAD/$4499 USD		Deore: $5999 CAD/$4499 USD
GX/PSE:$6999 CAD/$5299 USD		GX/PSE:$7099 CAD/$$5399 USD
GX/Factory:$7299 CAD/$$5499 USD		GX/Factory:$7399 CAD/$$5599 USD
XT: $7699 CAD/$5799 USD		XT: $7799 CAD/$5899 USD

Geometry

CHILCOTIN 6.0 (160/155)
	SMALL		MEDIUM		LARGE		X-LARGE
	MM	INCHES	MM	INCHES	MM	INCHES	MM	INCHES
Head tube length	100	3.9	108	4.3	115	4.5	125	4.9
Stand over height	721	28.4	730	28.7	745	29.3	769	30.3
Seat tube length	350	13.8	390	15.4	440	17.3	490	19.3
Seat tube Max. insertion depth	260	10.2	300	11.8	350	13.8	400	15.7
Top Tube Length	583	23.0	607	23.9	634	25.0	658	25.9
Effective Top Tube Length	596	23.5	623	24.5	650	25.6	677	26.7
Wheelbase Length	1224	48.2	1257	49.5	1289	50.7	1323	52.1
Stack	619	24.4	626	24.6	633	24.9	642	25.3
Reach	462	18.2	487	19.2	513	20.2	538	21.2
Fork Travel	29″, 160mm
Fork AC Length	575mm
Head angle	64.75 / 64.25 (Neutral / Slack)
Seat Tube Angle (Effective)	78.0 / 77.5 (Neutral / Slack)
BB height	346 / 336 (Neutral / Slack)
BB Drop	26
Chainstay length	438	17.2	442	17.4	446	17.6	450	17.7

CHILCOTIN 6.0 (170/170)
	SMALL		MEDIUM		LARGE		X-LARGE
	MM	INCHES	MM	INCHES	MM	INCHE S	MM	INCHES
Head tube length	100	3.9	108	4.3	115	4.5	125	4.9
Stand over height	724	28.5	734	28.9	749	29.5	773	30.4
Seat tube length	350	13.8	390	15.4	440	17.3	490	19.3
Seat tube Max. insertion depth	260	10.2	300	11.8	350	13.8	400	15.7
Top Tube Length	583	23.0	607	23.9	634	25.0	658	25.9
Effective Top Tube Length	597	23.5	624	24.6	651	25.6	678	26.7
Wheelbase Length	1228	48.3	1261	49.6	1293	50.9	1327	52.2
Stack	623	24.5	630	24.8	637	25.1	646	25.4
Reach	458	18.0	483	19.0	509	20.0	534	21.0
Fork Travel	29″, 170mm
Fork AC Length	585mm
Head angle	64.25 / 63.75 (Neutral / Slack)
Seat Tube Angle (Effective)	77.5 / 77.0 (Neutral / Slack)
BB height	349 / 339 (Neutral / Slack)
BB Drop	26
Chainstay length	438	17.2	442	17.4	446	17.6	450	17.7

Technical Specifications

	CHILCOTIN 160/155	CHILCOTIN 170/170
Front travel	160mm Nominal. Intended use: 160-180mm	170mm Nominal. Intended use: 160-180mm
Rear travel	155mm	170mm
Wheel size and max width	29″ x 2.6″	29″ x 2.6″
Drop out/hub spec	12*157mm	12*157mm
Seat post diameter	31.6	31.6
Seat post insert depth	300mm+	300mm+
Dropper post range	Small 175mm; M, L & XL 200mm+	Small 175mm; M, L &/ XL 200mm+
Headset	44mm upper & 56mm lower	44mm upper & 56mm lower
Post collar	35mm	35mm
Frame material	6066 Aluminum	6066 Aluminum
Internal cable routing with Di2 battery compartment	Yes	Yes
Chain guide tabs	ISCG-05 (removable)	ISCG-05 (removable)
BB Shell spec	73mm BSA threaded	73mm BSA threaded
Chainline	54 – 57mm with 55 – 56mm optimal	54 – 57mm with 55 – 56mm optimal
Rear brake tabs	Post mount 180mm	Post mount 180mm
Two geo settings	Yes	Yes
Bottle Mounts	Yes	Yes
Tool Mounts	Yes	Yes

Build Kits

	Fox Factory / Shimano XT	Fox Factory / SRAM GX	Fox PS-E / SRAM GX	MARZ / Shimano Deore
Rear shock: 155	Float X2 Factory 60mm	Float X2 Factory 60mm	RS SDLX Ultimate 60mm (B2)	RS SDLX Ultimate 60mm (B2)
Fork: 160	Fox 36 29″ 160mm Factory	Fox 36 29″ 160mm Factory	Fox 36 29″ 160mm PS-E	Marz Z1 29″ 160mm
Rear shock: 170	Float X2 Factory 65mm	Float X2 Factory 65mm	RS SDLX Ultimate 65mm (B2)	RS SDLX Ultimate 65mm (B2)
Fork: 170	Fox 38 29″ 170mm Factory	Fox 38 29″ 170mm Factory	Fox 38 29″ 170mm PS-E	Marz Z1 29″ 170mm
Headset	Cane Creek 40	Cane Creek 40	FSA	FSA
Stem	Raceface Aeffect R 35mm dia, 40mm	Raceface Aeffect R 35mm dia, 40mm	Aeffect R 35mm dia, 40mm	Aeffect R 35mm dia, 40mm
Bar	Spank Spike Vibracore 35 x 800	Spank Spike Vibracore 35 x 800	Aeffect R 35 x 780	Aeffect R 35 x 780
Grips	Spank Spoon	Spank Spoon	SDG Thrice	SDG Thrice
Shifter	Shimano XT 12 spd	SRAM GX 12 spd	SRAM GX 12 spd	Shimano Deore 12spd
Bakes	Shimano 8120	Magura MT5	Magura MT5	Deore 6120
Rotors	203 / 180 SM-RT76	203 / 180	203 / 180	203 / 180 SM-RT66
Saddle	SDG Bel-Air V3	SDG Bel-Air V3	SDG Bel-Air V3	SDG Bel-Air V3
Seat Post	SDG Tellis V2 200mm / 170mm	SDG Tellis V2 200mm / 170mm	SDG Tellis V2 200mm / 170mm	SDG Tellis V2 200mm / 170mm
Dropper Remote	SDG Tellis Adjustable 22.2mm	SDG Tellis Adjustable 22.2mm	SDG Tellis Adjustable 22.2mm	SDG Tellis Adjustable 22.2mm
Seat Collar	Knolly 35mm	Knolly 35mm	Knolly 35mm	Knolly 35mm
Crankset	Shimano 8130 x 170mm	SRAM Descendant 7K	SRAM Descendant 7K	Shimano 6130 x 170
Bottom	Shimano BB-MT800	SRAM DUB	SRAM DUB	Shimano BB-MT501

Bracket
Rear Derailleur	Shimano XT 12 spd	SRAM GX Eagle	SRAM GX Eagle	Shimano Deore 12 spd
Cassette	Shimano XT 12 spd 10-51T	SRAM PG 1175 10-52 Eagle	SRAM PG 1175 10-52 Eagle	Shimano Deore 12 spd 10-51T
Chain	Shimano XT 12 spd	SRAM NX Eagle	SRAM NX Eagle	Shimano Deore 12 spd
Front Wheel	DT Swiss M1900 29″ 15 x 110	DT Swiss M1900 29″ 15 x 110	DT Swiss M1900 29″ 15 x 110	DT Swiss M1900 29″ 15 x 110
Rear Wheel	DT Swiss M1900 29″ 12 x 157 MicroSpline	DT Swiss M1900 29″ 12 x 157 XD	DT Swiss M1900 29″ 12 x 157 XD	DT Swiss M1900 29″ 12 x 157 MicroSpline
Front Tire	Maxxis Assegai 29″ x 2.5″ Maxx Grip EXO+	Maxxis Assegai 29″ x 2.5″ Maxx Grip EXO+	Maxxis Assegai 29″ x 2.5″ Maxx Grip EXO+	Maxxis Assegai 29″ x 2.5″ Maxx Grip EXO+
Rear Tire	Maxxis DHR II 29″ x 2.4″ Maxx Terra EXO+	Maxxis DHR II 29″ x 2.4″ Maxx Terra EXO+	Maxxis DHR II 29″ x 2.4″ Maxx Terra EXO+	Maxxis DHR II 29″ x 2.4″ Maxx Terra EXO+
Sealant	Stans 50ml qty: 2	Stans 50ml qty: 2	Stans 50ml qty: 2	Stans 50ml qty: 2
